P04 Series Core, low-profile architecture, improved exhaust capacity.
low-profile overpressure relief architecture, with component geometry configured for compact integration and improved exhaust capacity. Compatible with P04 flanges.
- ① LID DESIGN – OPV P04
- ② SPRING DYNAMICS – CONIC COIL
- ③ PLATE PROFILE – SECTOR
- ④ GASKET TYPE – SLOT-FIT
LOW-PROFILE. HIGH-CAPACITY EXHAUST.
The P04 Series defines a low-profile relief platform for buoyancy and inflatable systems built around the P04 interface.
Its reduced external diameter keeps overall bulk contained while maintaining high-capacity exhaust, supporting clean integration in layouts where space and installed envelope need to stay controlled. A compact platform developed for tighter integration constraints.

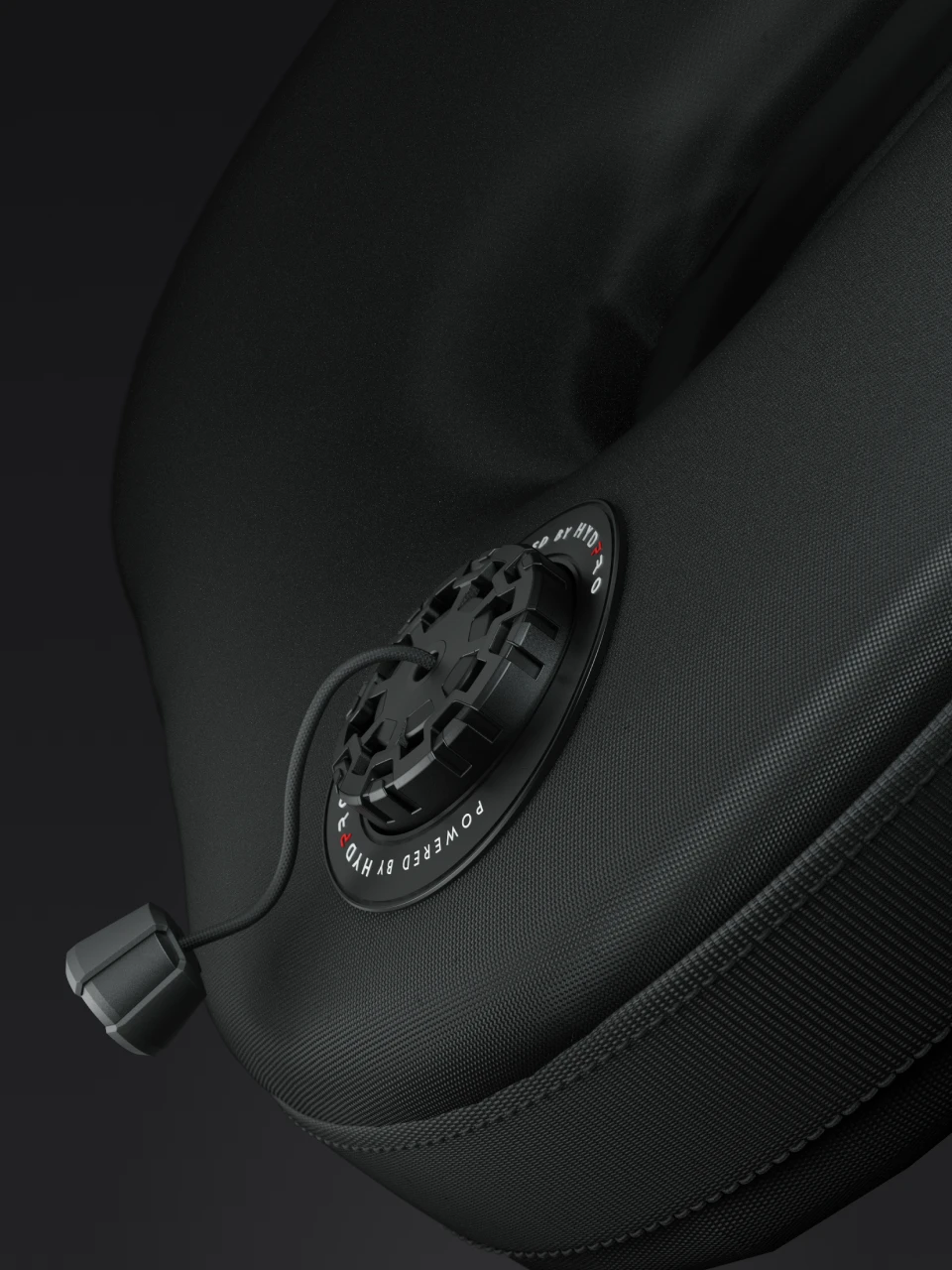

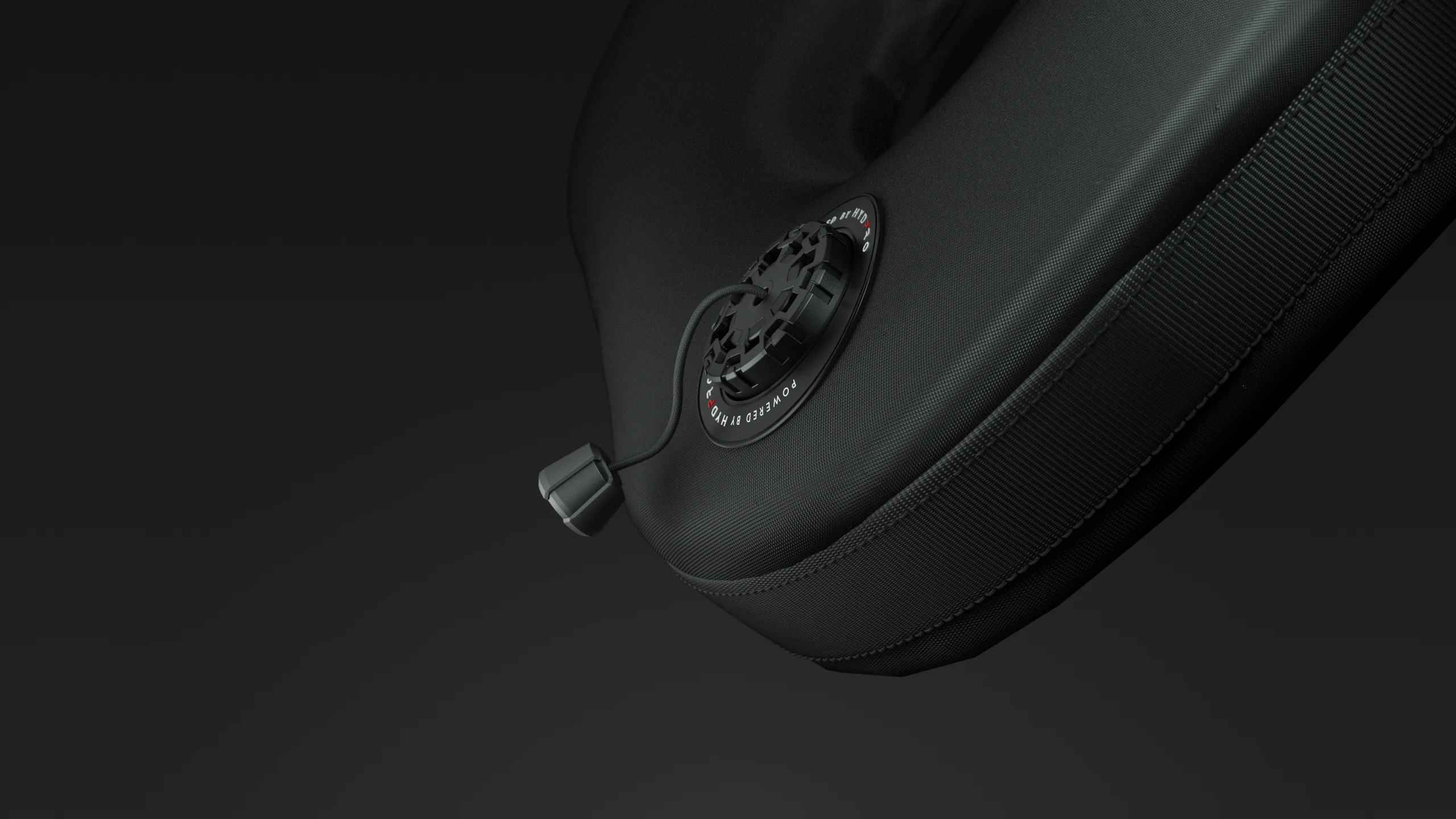

P04 OPV
KEY FEATURES
Defined by Series interface, profile architecture, and platform function.
Sharp
TOP PROFILE
Clean-cut profile
Crisp geometry.
Conic Coil
SPRING GEOMETRY
Conical geometry maximizes packaging efficiency and extends usable stroke for higher flow within a lower profile valve design.
SECTOR
GASKET PLATE
Sector profile with increased clearance geometry for higher capacity.
SLOT-FIT
GASKET DESIGN
Slot fit gasket with dedicated knot pocket for compact, low profile assembly.
EXHAUST CAPACITY
Maximum exhaust capacity
Flange diameter ~45 mm / ~1.77 in Medium profile
Min collar height ~10 mm / ~0.39 in
Trapezoidal thread, 2.5 mm pitch
5-Ridge alternating interlock coupling section

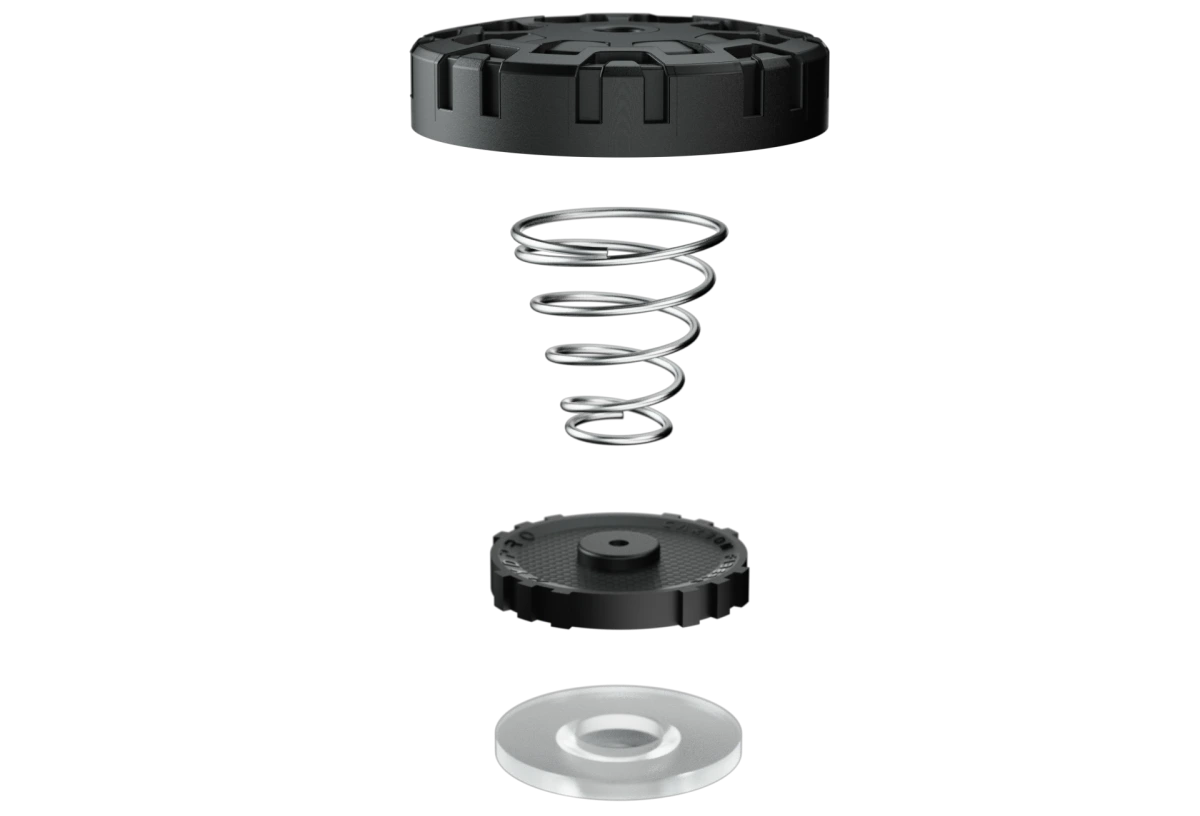

ASSEMBLY & COMPONENT VIEWS
Complete assembly views and component breakdown.
Clean-cut profilernCrisp geometry
AVAILABLE PULL KNOB OPTIONS
For OEM builds, multiple pull knob configurations are available at configuration stage, aligned with series supply.
